• Type: Unmanaged Gigabit Ethernet Switch
• Port Configuration:
• 24 × 10/100/1000BASE-T RJ45 ports
• Auto-MDI/MDIX support (crossover detection)
• Switching Capacity: 48 Gbps (non-blocking)
• Forwarding Rate: 35.7 Mpps
• MAC Address Table: 8K entries
• Jumbo Frames: Support up to 9KB

• Power Consumption: ≤12.8W (operational)
• Power Supply: Internal 100-240V AC
• Green Technology: IEEE 802.3az Energy Efficient Ethernet (EEE)
• Cooling: Fanless passive cooling design

• Dimensions: 440 × 180 × 44 mm (W×D×H)
• Weight: 2.3 kg
• Enclosure: Metal casing with plastic front panel
• Mounting Options: Desktop or 19" rack-mountable (1U height)
• LED Indicators: Per-port status (Link/Activity/Speed)

• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS (Basic traffic prioritization)

• Store-and-Forward switching architecture
• Auto-negotiation on all ports
• Backpressure flow control for half-duplex
• Cable diagnostics: Automatic detection of cable faults

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity: 10% to 90% non-condensing

• Small-to-medium business (SMB) networks
• IP surveillance systems (NVR/IP camera connectivity)
• NAS and SAN storage connectivity
• Backbone for workgroup networks
• High-performance gaming LAN environments

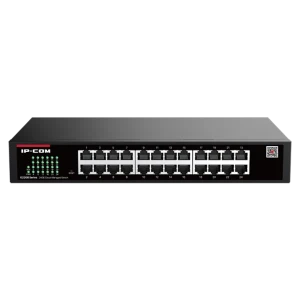

• G2224D switch unit
• Power cord
• Rack-mount ears (optional)
• Rubber feet for desktop placement
• Quick installation guide

• Manufacturer Warranty: 3 years limited
• MTBF: >100,000 hours
• Support: Firmware updates available on IP-COM website

• Plug-and-play operation (zero configuration required)
• Full wire-speed forwarding on all ports
• Low-latency switching (<4μs)
• Broadcast storm protection
